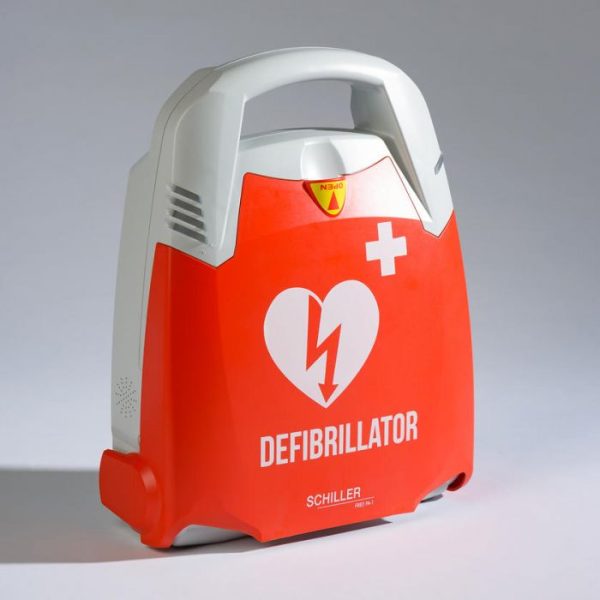

AED defibrillator FRED PA-1 semi-automatic public access Cat. SCH-FREDPA1 Schiller
Description:
- As soon as the device cover is lifted, the FRED PA-1 defibrillator turns on automatically.

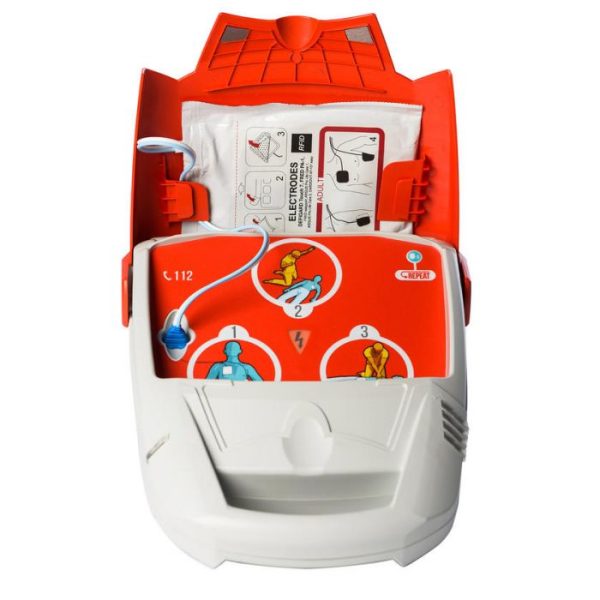

- It is only necessary to place the pre-connected electrodes on the patient's chest. Systematic pre-charging allows the discharge to be administered when necessary
- The patient is defibrillated through disposable adhesive electrodes (Pads) with which the ECG signal is also acquired for analysis.
- The user can choose between pediatric or adult electrodes, knowing that the device precisely identifies the type of electrodes connected and automatically selects the corresponding energy levels for defibrillation.
- Available as semi-automatic or fully automatic equipment.
- In its automatic version, the FRED PA-1 manages the download without the user having to perform any action.
- In its semi-automatic version, the FRED PA-1 instructs the user to administer the shock by pressing the corresponding button.
- Stores a maximum of 2 hours of intervention data including 500 events, using an SD memory card intervention data can be easily retrieved.
- Long-lasting battery (5 years) to always be prepared for the day it is needed.
- The battery charge is analyzed during the self-test and if the level is low, it is indicated by an LED.

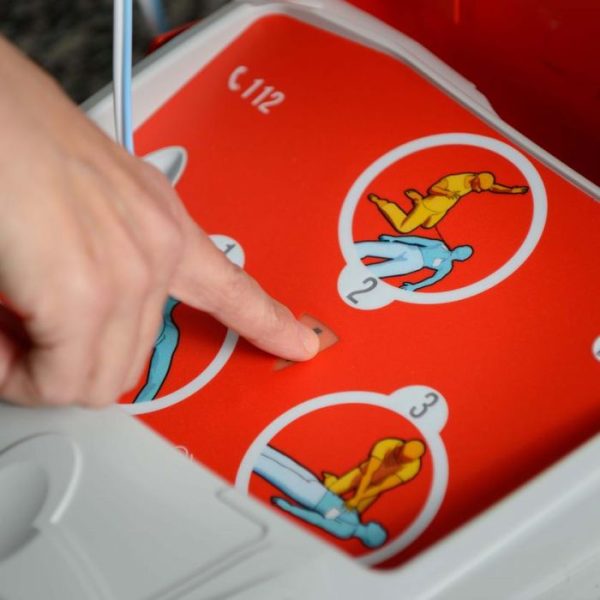

- Facilitates Cardiopulmonary Resuscitation by indicating the correct position of the hands; set a regular rhythm (metronome) and report chest compression rate based on impedance measurements without any additional sensors (FreeCPR).
Features:
- Dimension
- Length 300 mm
- Width 255 mm
- Height 100 mm
- Weight 5 kg
- Protection against dust and water: IP55
- Power Supply: replaceable 2V, 15Ah Li-MnO2,8 battery
- Battery capacity: more than 140 discharges at maximum power and 6 hours of operation if the device is stored/used in optimal temperature conditions, between 15 and 25 °C.
- Battery life in standby mode: 5 years.
- LEDs and pictograms with voice messages to guide the user.
- Voice message languages: The device can include several languages.
- Optional configuration with 3 languages, when the device is turned on.
- Metronome: configurable rhythm for CPR
- Interface: SD memory card
- Recorded data: 2 hours of ECG signal recording and 500 technical events.
- Waveform: Biphasic truncated Exponential.
- Energy: Adult: 150/200/200J / Pediatric: 50/50/50J
- Patches: Adult and pediatric / Cable length: 2m
Includes:
- Adult patch
- Battery
- Case
- 1 year warranty
